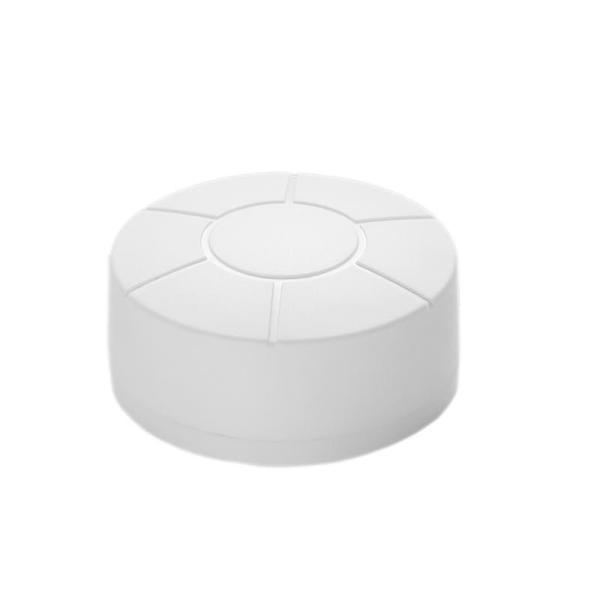

Bluetooth Beacon with New chip 3431 broadcast UUID, Major Minor reach 80 meters using 3M glue acceleration sensor
Model Name: ITBB803-A
Bluetooth beacon ITBB803_standard_3431_acceleration
Product Overview
The Bluetooth beacon has a very widely application in many areas, till now we have worked with several big customers like Tesla Shanghai plant, Haier and Walmart… etc, we worked with our partners to achieved the successful projects and we still will work with more and more global partners to explore more opportunities in this area.
Our main strength is Technology, not the product quantity, our engineer can develop any beacon products for customer with short time, from ID/MD design to tooling, Hardware and Software design and PCB manufacturing, with this experienced engineer team we can deliver to our clients best customization product with quickest time
. Bluetooth beacon based on low power Bluetooth chip
. Powered by two ER14250 batteries and can be used for up to 5 years
. Broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address
. Beacon parameters can be set through the mobile phone APP
. Broadcast distance can reach 80 meters
. Using 3M glue can be easily installed and fixed
. Firmware have connect type and non-connect type
. With temperature and humidity sensor and acceleration sensor optional
. With unique design for IP67 protection
. CE, RoHS, FCC, KC compliance
. With acceleration sensor
Specification:
Hardware Parameters
| Hardware parameters |
| Antenna |
PCB Antenna |
| Battery |
ER14250 2*1200mAh |
| Voltage |
3.6V |
| Dimensions (D×H) |
53.86*24.93mm |
| Wireless Performance |
| Wireless standard |
Bluetooth ® 4.2 |
| Frequency range |
2400MHz---2483.5MHz |
| Data rate |
1Mbps |
| Modulation mode |
GFSK Modulation |
| Encryption |
AES HW Encryption |
| Transmission power |
Tx Power -20 to +4 dBm in 4 dB Steps |
| Reveiving sensitivity |
-93dBm at 1 Mbps BLE |
| Work mode |
Peripheral |
| Other |
|
Environment
|
Working temperature: -40℃~85℃ |
| Storage temperature: -40℃~85℃ |
| Working humidity: 10%~90% Non-condensing |
| Storage humidity: 5%~90% Non-condensing |
| Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors) |
| Measurement accuracy of humidity |
±1.5 %RH |
| Humidity measurement resolution |
0.01 %RH |
| Temperature measurement accuracy |
±0.1 ℃ (20℃-60℃) |
| Temperature measurement resolution |
0.015 ℃ |
| Temperature measurement range |
-40~125 ℃ |
